Part 1 of 3 in the Drive and printer mappings for Entra-joined devices series. Part 1 (this article) - reading AD group data from a cloud-only device and acting on it. Part 2 - running the job only when on-prem AD is actually reachable. Part 3 - packaging and deploying the whole thing with PSAppDeployToolkit and Intune.

There is no shortage of drive- and printer-mapping scripts for cloud-only devices. I went looking before writing any of this, and found plenty of them: mapping tables hardcoded in the script, JSON or CSV manifests shipped inside the package, Intune remediation scripts with the share list sitting in a switch block. All of them work. All of them keep the list of who-gets-what somewhere other than where that decision is actually made.

What I did not find was one that asks Active Directory itself. So I wrote it, and this is that script.

You are moving to cloud-only devices - Entra-joined, managed by Intune, no on-prem domain join at all. For most of the fleet that is a good move.

The files, though, often stay on-prem. Migrating file shares and print servers is its own project, usually a slow one, and until it is done your users still need the shares and AD-connected printers those servers provide. Cloud-only identity does not mean cloud-only resources.

That is where the pain shows up. Drive letters and printers used to arrive via Group Policy Preferences, or on older estates a logon script. Either way the mechanism runs because a domain logon happened: Group Policy is processed against a domain controller, and a logon script needs a NETLOGON share to run from. On an Entra-joined device no domain logon ever happens. No DC to process policy against, no NETLOGON share, no USERDNSDOMAIN. The user signs in, gets to the desktop, and H: is not there.

The file servers have not changed. They are still behind Active Directory, and access to them is still governed by AD group membership. That directory is still the correct answer to “which shares should this user have?” - the device just has no logon-shaped way to ask it any more.

This article is about asking it anyway.

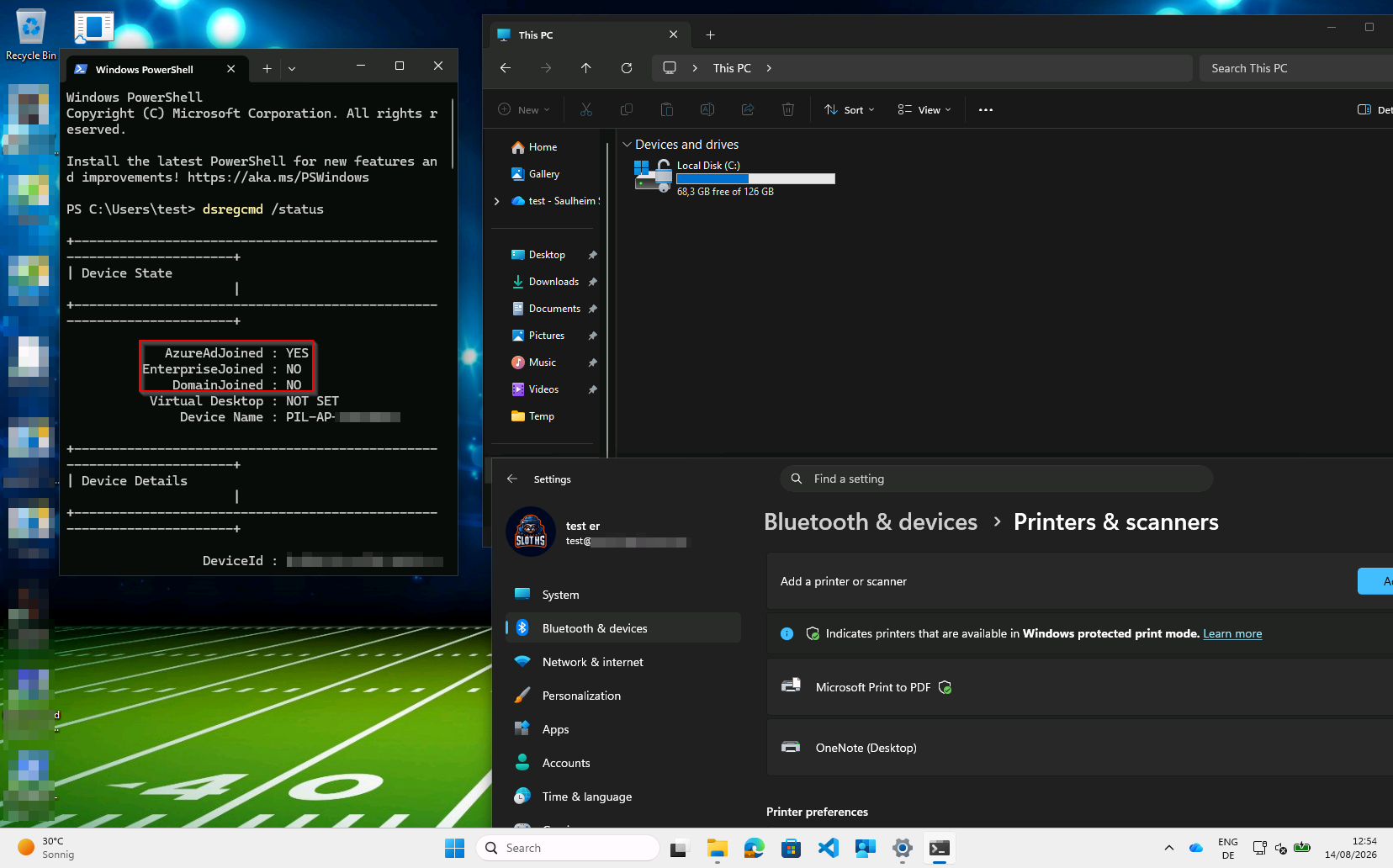

The starting point: AzureAdJoined : YES, DomainJoined : NO, and a device that has never heard of H: or the print server.

Table of Contents

• The Concept
• How the Script Works
• Prerequisites
  • Verify it, do not assume it
• Deployment
  • Step 1 - Prepare the AD groups
  • Step 2 - Set the script parameters
  • Step 3 - Run it as the signed-in user
• Getting the Script
• Things to Keep in Mind

The Concept

The instinct is to put a mapping table in the script - a list of groups with their paths and drive letters. Do not. You will be redeploying a script every time someone stands up a new share.

Instead, the AD group carries its own mapping instructions. A group that grants access to a share also describes how to map it, in one of its own attributes. Membership is the entitlement; the group’s attribute is the configuration. The script contains no list of shares at all.

Adding a new share becomes an AD task, not a packaging task.

How the Script Works

flowchart TD
    A[Task fires: logon, or Domain firewall profile] --> B{AD reachable on TCP 389 or 636?}
    B -- No --> Z[Exit 0, quietly]
    B -- Yes --> C[Resolve signed-in user's UPN from registry identity caches]
    C --> D[Find the AD user object via ADSI, bound as that user]
    D --> E[Walk memberOf recursively, keep groups whose CN matches a prefix]
    D --> F[Read the home share attribute off the user object]
    E --> G[Decode and validate each mapping value]
    F --> G
    G --> H[Deduplicate by Type + Path]
    H --> I[Assign real drive letters, skipping letters already in use]
    I --> J[net use for shares, Add-Printer for printers]

1. Pre-flight AD. A short-timeout TCP connect to port 389, then to 636 if 389 stays silent. If neither answers, exit 0 quietly - a laptop on a home network is not a failure, it is Tuesday.
2. Resolve the signed-in user’s UPN from the local registry identity caches.
3. Find the user object in AD with a single ADSI query, binding as the signed-in user with no stored credentials.
4. Walk memberOf recursively, keeping groups whose cn starts with one of the configured prefixes, and following nested groups.
5. Decode each matched group’s mapping attribute into a path and a requested drive letter, validating as it goes. A malformed value is skipped with a warning naming the group - never fatal to the run.
6. Add the home share from the user object as a special case, straight to a fixed letter.
7. Deduplicate by type and path, so the same share reached through two nested groups maps once.
8. Assign real drive letters, starting from the requested one and cycling forward if it is taken.
9. Map them - net.exe use for shares, Add-Printer -ConnectionName for printers - and transcript the whole run to a per-user log.

On resolving the UPN: the obvious route is whoami /upn, but that spawns a child process from a scheduled task, which endpoint protection products treat as reconnaissance. The script reads the IdentityStore cache instead, keyed by the current user’s SID, and only falls back to whoami if the registry sources are absent or do not match the current user.

Prerequisites

The script binds to LDAP with no credentials of its own, as whoever is signed in. So the one thing that has to be true is that Windows can turn the Entra sign-in into a credential a domain controller accepts. How it does that depends on how the user signed in - and the common case needs nothing deployed at all.

On password sign-in, Entra ID returns the user’s on-prem domain details alongside the Primary Refresh Token, the LSA enables Kerberos and NTLM, and the device spends the password credential at a DC for a real TGT. Microsoft documents this in How SSO to on-premises resources works on Microsoft Entra joined devices. Note that this is Kerberos, not an NTLM fallback - you do not need to leave NTLM enabled for it.

On passwordless sign-in there is no password for the LSA to spend, which is exactly why Windows Hello for Business needs a trust model to supply the on-prem credential instead. Prefer cloud Kerberos trust: no PKI, no NDES, no certificate templates, just an Entra Kerberos server object published into your AD. Cloud Kerberos Trust - Part 1 on msendpointmgr.com is a good walkthrough. Plan for this even if password sign-in works today - it is what keeps this solution alive as you move to passwordless.

Beyond that: hybrid identity (users originate in on-prem AD and sync up via Entra Connect or Cloud Sync - a cloud-only user has no on-prem account to find), and line of sight to a domain controller at the moment the script runs, which is Part 2’s entire subject.

Verify it, do not assume it

Nothing in the code will tell you this is missing. The bind simply fails. Check before writing anything:

klist

Look for a ticket for krbtgt/CONTOSO.COM. That is the honest check regardless of sign-in method. On the cloud Kerberos trust path you can also use dsregcmd /status and look for OnPremTgt : YES under SSO State - but do not use that on the password path, where it reads NO on a perfectly working device.

Better still, prove the actual thing:

([ADSI]"LDAP://contoso.com").distinguishedName

If that returns DC=contoso,DC=com, you have an authenticated LDAP bind as the signed-in user from a device that is not domain-joined. That is the entire foundation.

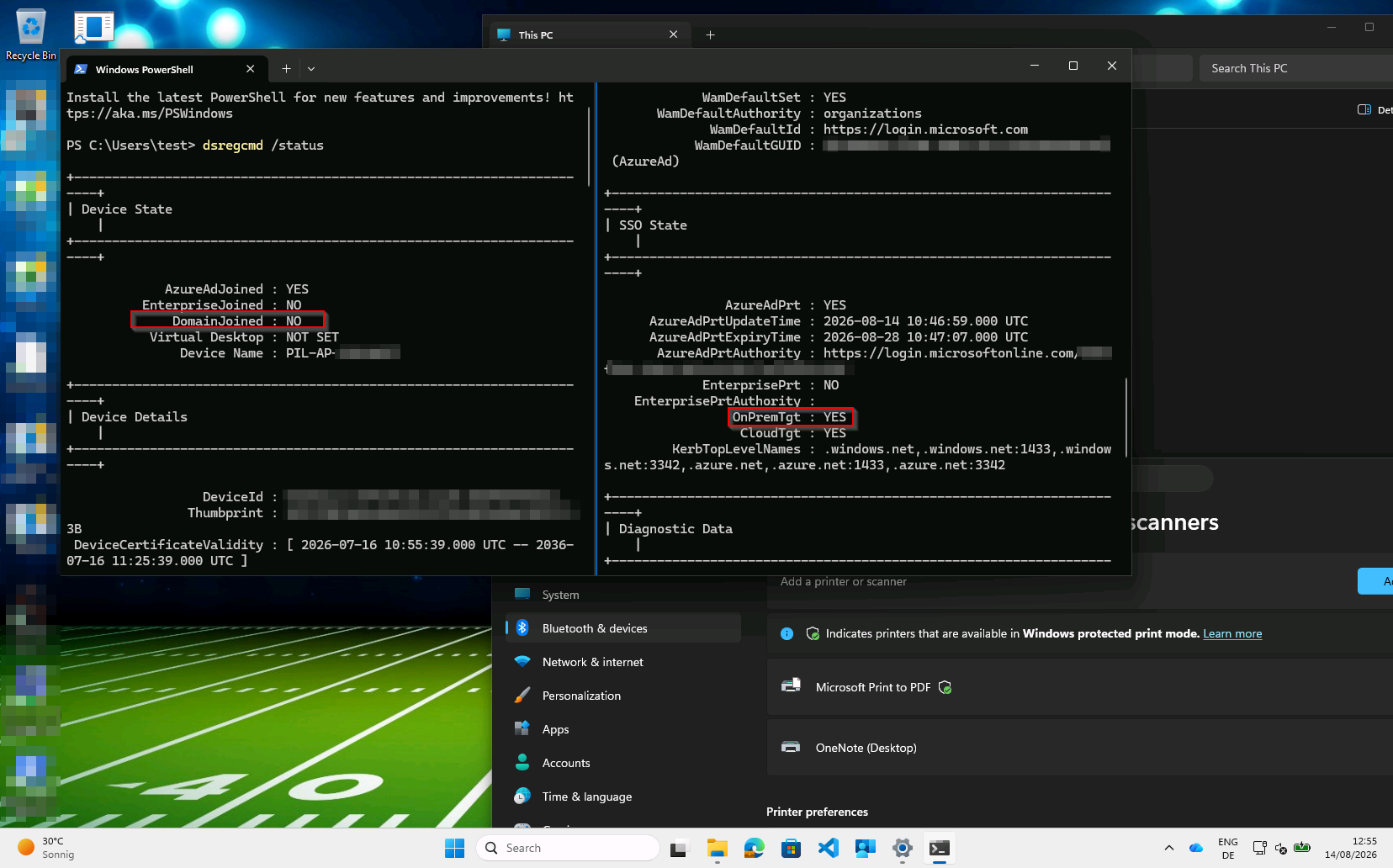

The combination that makes this work: DomainJoined : NO on the left, OnPremTgt : YES on the right. The device is not in the domain, but the signed-in user holds an on-prem TGT. This is a cloud Kerberos trust device - on the password path OnPremTgt reads NO and you check klist instead.

Deployment

Step 1 - Prepare the AD groups

This is where the actual configuration lives, so it is worth doing deliberately.

Naming. The prefix on the cn marks a group as “one of ours” and tells the script which kind of mapping it is. Pick one prefix per type, matching your directory’s convention:

The match is anchored to the start of the group’s cn, not a substring search of the whole DN - so an OU named OU=GRP-SMB-Groups will not accidentally pull in every group inside it.

The mapping value. Set the chosen attribute to <UNC path><delimiter><drive letter>:

\\fileserver01\finance;F

The first segment is the UNC path, the second the requested drive letter. Printers ignore the second segment entirely - a mount point is meaningless for them, so \\printserver01\HQ-Floor2-Colour on its own is the complete value.

Which attribute? I use info (the “Notes” field on the Object tab in ADUC) rather than description, because description is usually already carrying human-readable text and gets edited by people who have no idea a script is parsing it. info is free-text and rarely claimed by anything else.

The home share is not a group entitlement - it belongs to one user, so it lives on the user object. If your directory already populates AD’s standard homeDirectory, use that; it is purpose-built and often already filled in. Where it is unused or inconsistent, a spare extensionAttribute works just as well. Having the value is the entitlement, and it goes to a fixed letter rather than a requested one.

The permissions trap. Because the script binds as the signed-in user, every user can only see what their own account can see. If your directory restricts read access to info for ordinary users, the script will find the group, read nothing, and map nothing - silently, and correctly from its own point of view. Test with a genuinely unprivileged account, not your admin account, or you will ship something that works perfectly for exactly one person.

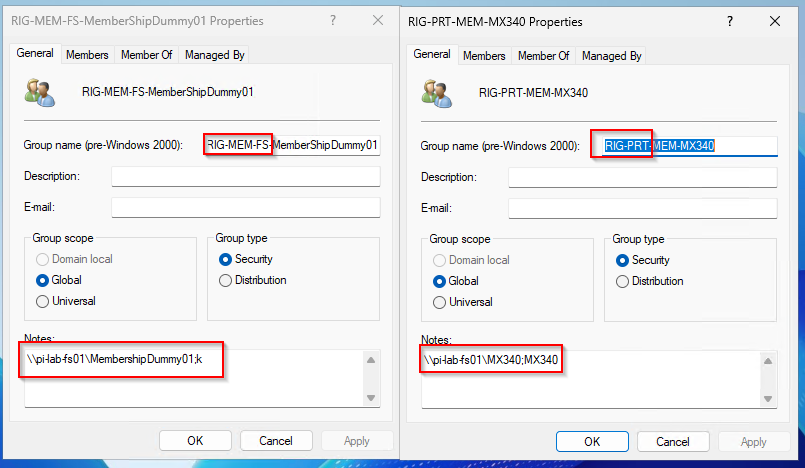

The whole configuration, in two fields. The prefix on the group name tells the script which kind of mapping this is, and the Notes field - the info attribute - carries the mapping value. A share group on the left with its requested drive letter after the delimiter, a printer group on the right where that second segment is ignored. The prefixes here are this lab’s naming convention; use whatever yours is and set ADGroupPrefix to match.

Step 2 - Set the script parameters

Everything is driven from the param() block at the top of the script. Nothing is hardcoded, so adapting it to your environment is a matter of setting these rather than editing logic:

A worked example - printers only, description instead of info, no home share:

.\MapDrivesAndPrinter.ps1 `
    -ADGroupPrefix @{ Printer = 'GRP-PRT-'; Share = '' } `
    -GroupMappingProperty 'description' `
    -HomeShareMappingProperty '' `
    -ADDomain 'contoso.com'

Step 3 - Run it as the signed-in user

The script must run in the user’s own session - it reads that user’s registry hive and creates mappings in their profile. Running it as SYSTEM will not work.

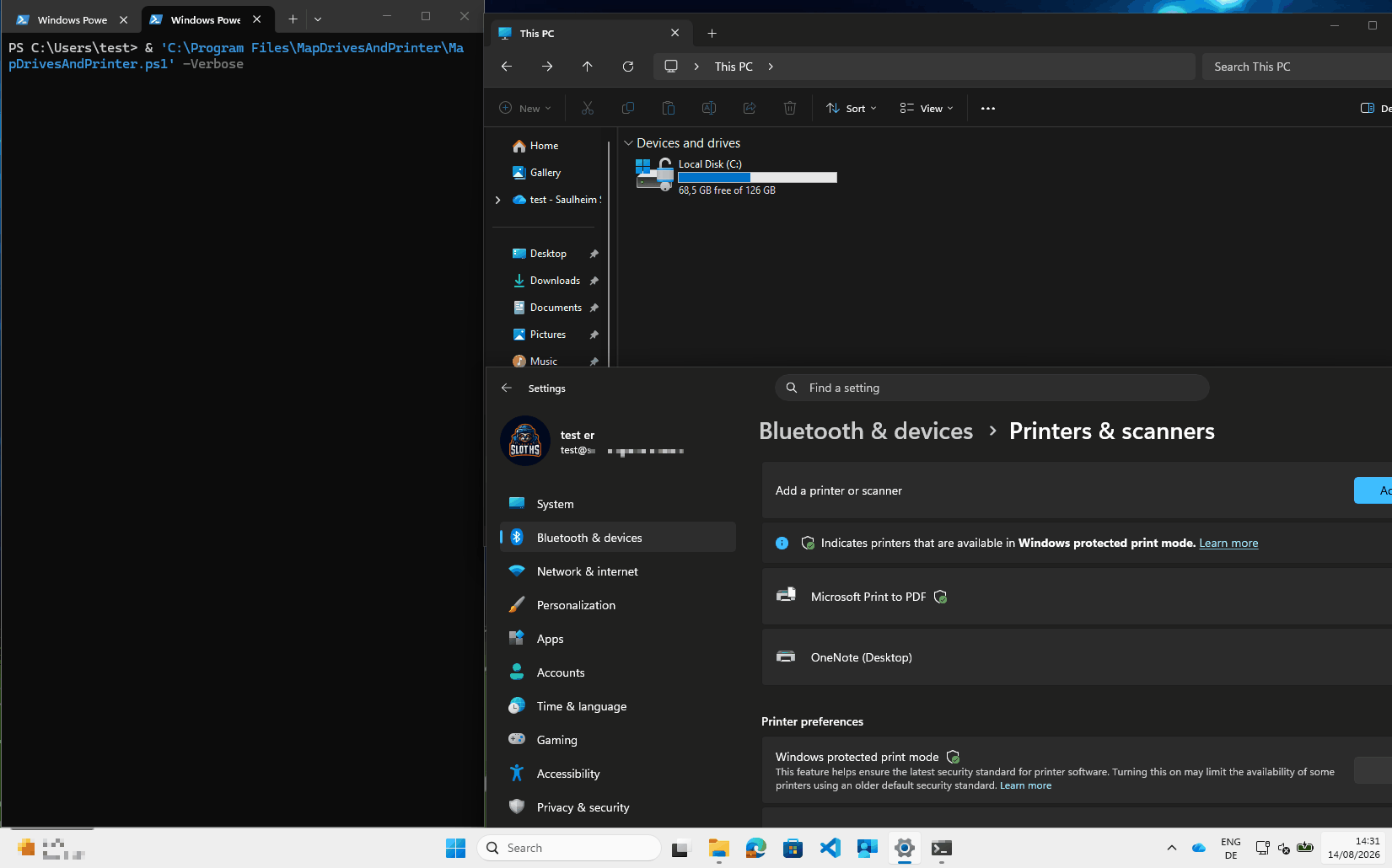

For a first test, just run it interactively on a device that passed the prerequisite check and read the transcript. Here is a full verbose run:

Watch the order: the user object is found over LDAP, memberOf is walked recursively, then each mapping is decoded and applied. Note what happens to the things that go wrong - two groups have an empty mapping attribute, and one of the two printers does not exist. Each is logged as a warning and stepped over, and the run still finishes with a drive and a printer on screen. A bad value in one group’s attribute must never cost a user their other mappings.

In production it runs from a scheduled task as the Users group, at least privilege, which is Part 2. Packaging and Intune deployment are Part 3.

Getting the Script

The script and the Pester test suite covering its logic are in the SasStu/MapPrinterAndSharesCloudOnlyFromAD repository on GitHub.

Things to Keep in Mind

Mappings are additive. Nothing is ever removed. A user who moves from Finance to Legal ends up holding both drives. That is deliberate: converging to a desired state means knowing which mappings we created, because the directory can only ever tell you which groups a user is in, never which ones they have left. That needs provenance - a local record maintained across runs, kept correct when a user maps something manually. It earns its keep only if stale mappings actually cause harm, and for drive letters they mostly do not. The share ACL still says no. A stale F: after the user leaves Finance is a broken shortcut, not a data leak.

Drive letters collide with things that are not shares. Letters in use are read from Get-PSDrive, not Get-SmbMapping. A USB stick sitting on H: is not an SMB mapping but it will absolutely break your home share. Because mappings are persistent, yesterday’s letters are still there today - reasoning only about the current run guarantees collisions.

One bad group must not cost you the run. A typo in one group’s info value skips that mapping with a warning naming the group’s cn, and the rest still map. The person reading the log needs to know which group to go fix.

Log verbosely. Nobody is watching this run. A transcript you did not need costs nothing; the alternative is debugging a silent no-op over a support call. When net.exe fails, log its output verbatim rather than matching on the message text - that text is localised and your parsing will break on the first German-language device.

It will fail at logon, almost every time. The user signs in at home, the VPN is not up, no DC is reachable - and the one moment you are guaranteed to execute is the one moment AD is guaranteed absent. Solving that is Part 2: making a scheduled task run when on-prem AD actually becomes reachable, using the Domain firewall profile as the signal and the Intune NetworkListManager CSP to earn that profile on a device with no domain membership to earn it with.
