Part 2 of 3 in the Drive and printer mappings for Entra-joined devices series. Part 1 - reading AD group data from a cloud-only device and acting on it. Part 2 (this article) - running the job only when on-prem AD is actually reachable. Part 3 - packaging and deploying the whole thing with PSAppDeployToolkit and Intune.

Part 1 ended with a working script: given a cloud-only device whose signed-in user can authenticate to on-prem AD, it discovers their group memberships and creates the matching drive and printer mappings.

Now it needs to run. The obvious trigger is logon - that is, after all, what the GPO or logon script it replaces ran on. It is the worst possible choice.

Think about when a laptop actually signs in. The user opens the lid at home, or on a train, or in a hotel. Wi-Fi associates somewhere around the time the credential provider appears. The VPN client has not connected yet - on many setups it cannot connect until after sign-in, because it wants the user’s identity first. So at the exact moment the logon trigger fires, the device has no route to any domain controller. The one moment we are guaranteed to run is the one moment AD is guaranteed to be absent.

An hour later the user connects the VPN or walks into the office, AD becomes reachable, and nothing happens - the trigger fired long ago and the mappings are already “done”.

The logon trigger doing exactly what it promises: the task fires at 19:29:48, finds nothing answering on 389 or 636, and exits quietly twelve seconds later. Nothing is broken - the timing is simply wrong.

Table of Contents

• The Concept
• How the Trigger Works
• Prerequisites
• Deployment
  • Step 1 - Configure the NetworkListManager CSP in Intune
  • Step 2 - Verify the Domain profile
  • Step 3 - Build the event subscription
  • Step 4 - Configure the scheduled task
  • Step 5 - Verify end to end
• The Complete Task Definition
• Things to Keep in Mind

The Concept

What we want to know is: has this device just arrived somewhere that on-prem AD is plausibly reachable from?

Windows already tracks a version of that question and exposes the answer as the firewall profile. The Domain profile is applied when Windows believes it is on the corporate network. That belief is normally earned by domain membership - and a cloud-only device has none, so left alone it will classify the corporate network as Private or Public forever.

So we grant it one. Since the Windows 11 2302 release, Intune’s Settings Catalog exposes the Network List Manager CSP:

Instead of proving it is on the corporate network by authenticating to a domain controller, the device proves it by validating the certificate of a server that only exists inside the corporate network. Windows switches to the Domain profile, and raises an event saying so. That event is our trigger.

How the Trigger Works

flowchart TD
    A[Device connects to a network] --> B{Internal HTTPS endpoint reachable and certificate valid?}
    B -- No --> C[Private or Public profile, nothing happens]
    B -- Yes --> D[Windows marks the network domain-authenticated]
    D --> E[Domain firewall profile applied]
    E --> F[Firewall log: Event 2010, NewProfile=1]
    F --> G[Task event subscription matches, waits 1 minute]
    G --> H{Test-ADReachable, TCP 389 then 636}
    H -- No --> I[Exit 0 quietly, wait for next trigger]
    H -- Yes --> J[Map drives and printers]

1. The device connects to a network - office Ethernet, corporate Wi-Fi, or a VPN coming up.
2. Windows tries the endpoints named in the NetworkListManager policy, over HTTPS, and validates the certificate chain.
3. On success it marks the network domain-authenticated and applies the Domain firewall profile.
4. Event 2010 is written to the firewall operational log with a NewProfile value of 1.
5. The scheduled task’s event subscription matches that event, and only that event, then waits one minute before starting.
6. The script pre-flights AD itself with a short TCP connect to port 389, falling back to 636 if 389 stays silent, because the Domain profile means Windows decided where it is, not that a DC is answering.
7. If AD answers, it maps. If not, it exits 0 and waits for the next trigger.

A logon trigger stays alongside the event trigger, for the office desktop that boots onto the corporate network with AD already reachable. Two triggers, one action.

This is proof of network, not proof of service. A successful validation tells you the device is sitting somewhere internal resources are reachable from. It does not tell you any particular domain controller is up, routable, or answering LDAP. Step 6 exists because of that gap.

Prerequisites

Everything here rests on the endpoint you name in the CSP policy, which carries the entire security property of the design. Choose it deliberately:

Multiple endpoints are allowed - use more than one if a single host would be a fragile dependency.

Beyond the endpoint: Windows 11 2302 or later for the Settings Catalog to expose Network List Manager, and everything from Part 1 - hybrid identity, and a signed-in user who can authenticate to on-prem AD.

This is a hard prerequisite, not an optional extra. Without the CSP policy deployed, a cloud-only device never receives the Domain profile, the event below never fires, and the task silently degrades to logon-only - with no error anywhere to explain why mappings stopped appearing. If you take one thing from this article, take that sentence.

Deployment

Step 1 - Configure the NetworkListManager CSP in Intune

1. Intune admin center → Devices → Configuration → Create → New policy.
2. Platform Windows 10 and later, profile type Settings catalog.
3. Search the catalog for Network List Manager.
4. Add Allowed Tls Authentication Endpoints and enter your internal HTTPS endpoint(s), one per line, as full URLs: https://intranet.contoso.com.
5. Optionally add Configured Tls Authentication Network Name and give it a recognizable name - it is what users and your support team will see as the network’s name.
6. Assign to your device group.

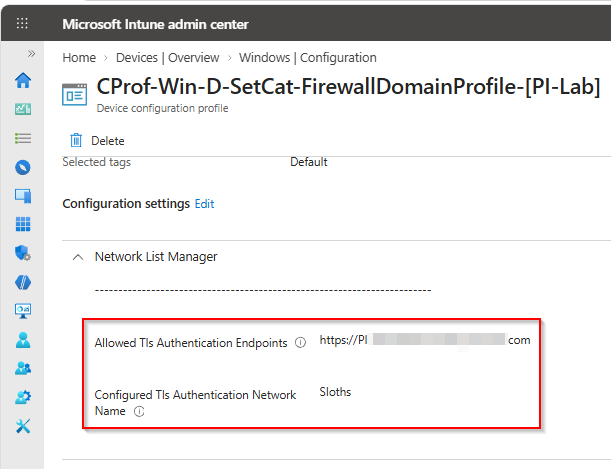

The entire policy, in two settings. The endpoint list is the part that carries the security property - the network name is only what your users and your support desk will see.

Step 2 - Verify the Domain profile

On a target device, connected to the corporate network:

Get-NetConnectionProfile

NetworkCategory should read DomainAuthenticated. If it says Private or Public, the policy has not applied, the endpoint is not reachable, or its certificate did not validate - check in that order. The firewall’s own view:

Get-NetFirewallProfile -Name Domain | Select-Object Name, Enabled
netsh advfirewall show currentprofile

Do not continue until this reads DomainAuthenticated. Everything downstream depends on it.

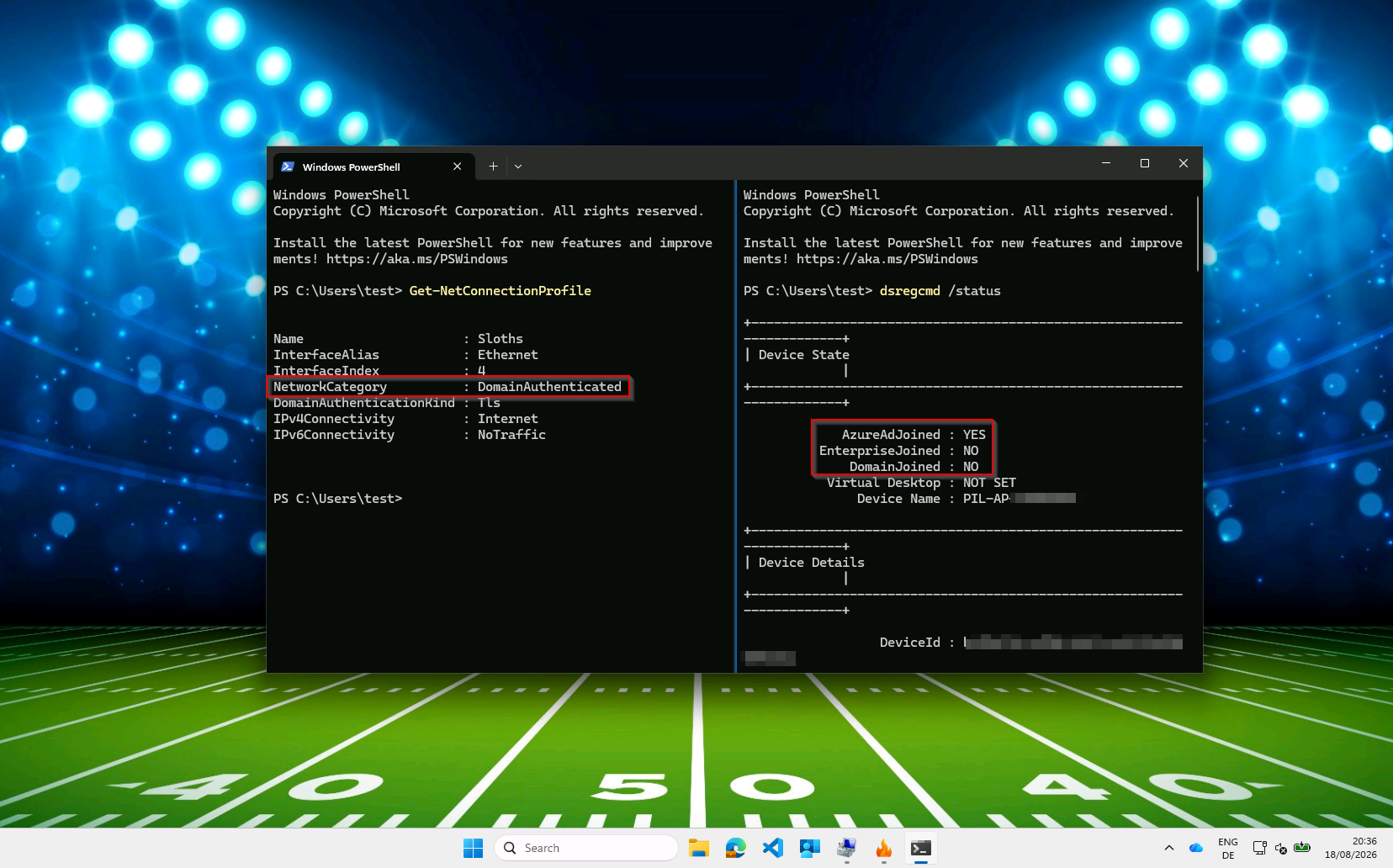

The combination this whole article is built on: DomainAuthenticated with DomainAuthenticationKind : Tls on the left, DomainJoined : NO on the right. The Domain profile on a device that never joined a domain.

Step 3 - Build the event subscription

The profile change lands in Microsoft-Windows-Windows Firewall With Advanced Security/Firewall as Event ID 2010, carrying a NewProfile field. That field is the NET_FW_PROFILE2 bitmask:

We want 1, and only 1. Every network change raises a 2010 - joining hotel Wi-Fi raises one with NewProfile=4. Subscribing without filtering means running the script every time anybody changes network, which is the polling behavior we are avoiding.

<QueryList>
  <Query Id="0" Path="Microsoft-Windows-Windows Firewall With Advanced Security/Firewall">
    <Select Path="Microsoft-Windows-Windows Firewall With Advanced Security/Firewall">
      *[System[(Level=4 or Level=0) and (EventID=2010)]]
      and
      *[EventData[Data[@Name='NewProfile'] and (Data='1')]]
    </Select>
  </Query>
</QueryList>

Test the filter before wiring it to anything: paste it into Event Viewer’s Filter Current Log → XML tab, disconnect and reconnect the corporate network, and confirm exactly one event appears.

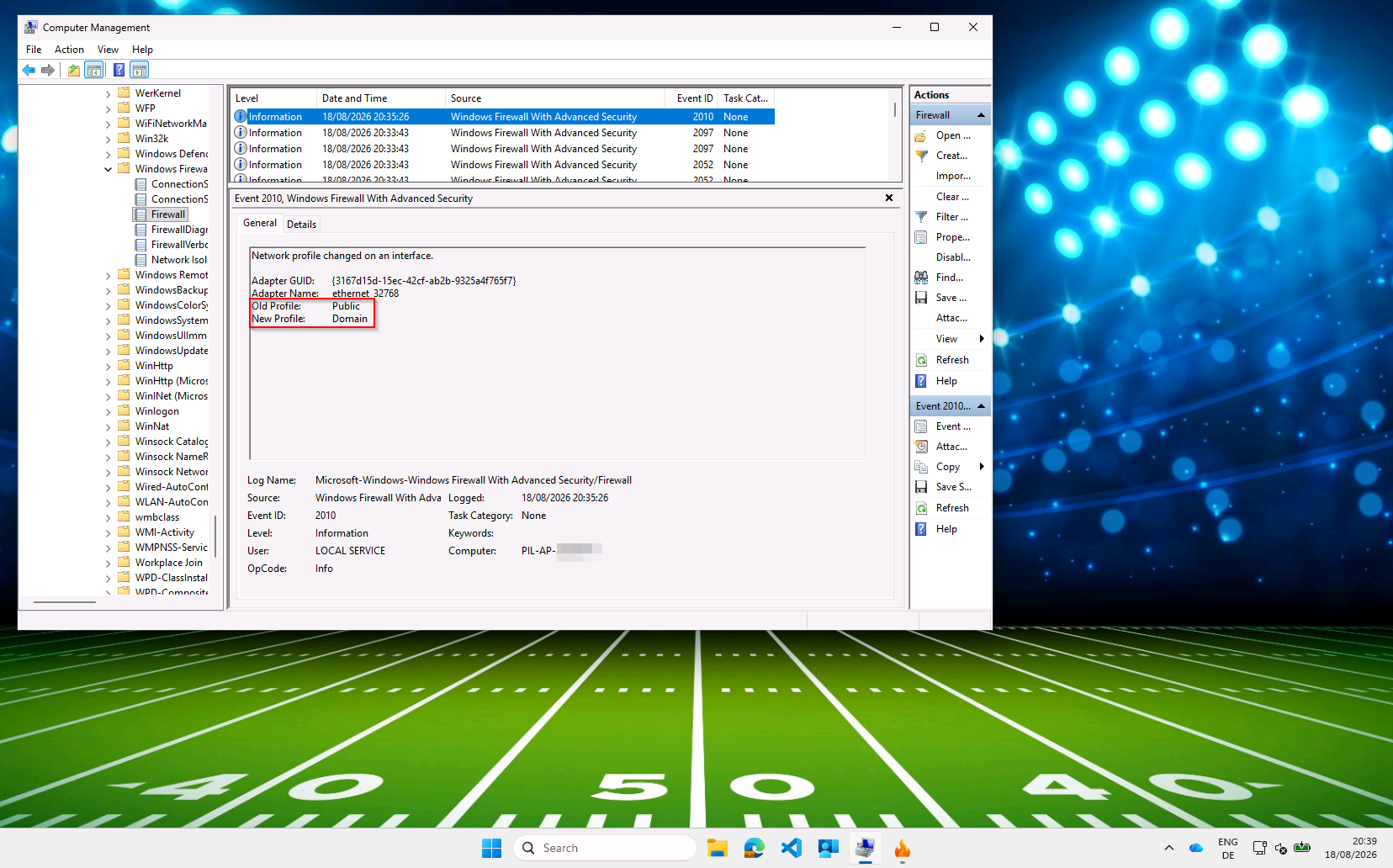

Public to Domain, in plain language. This is the moment the task has been waiting for.

The General tab renders the profile by name; the Details tab shows the raw EventData the subscription actually filters on - NewProfile as the bitmask value 1:

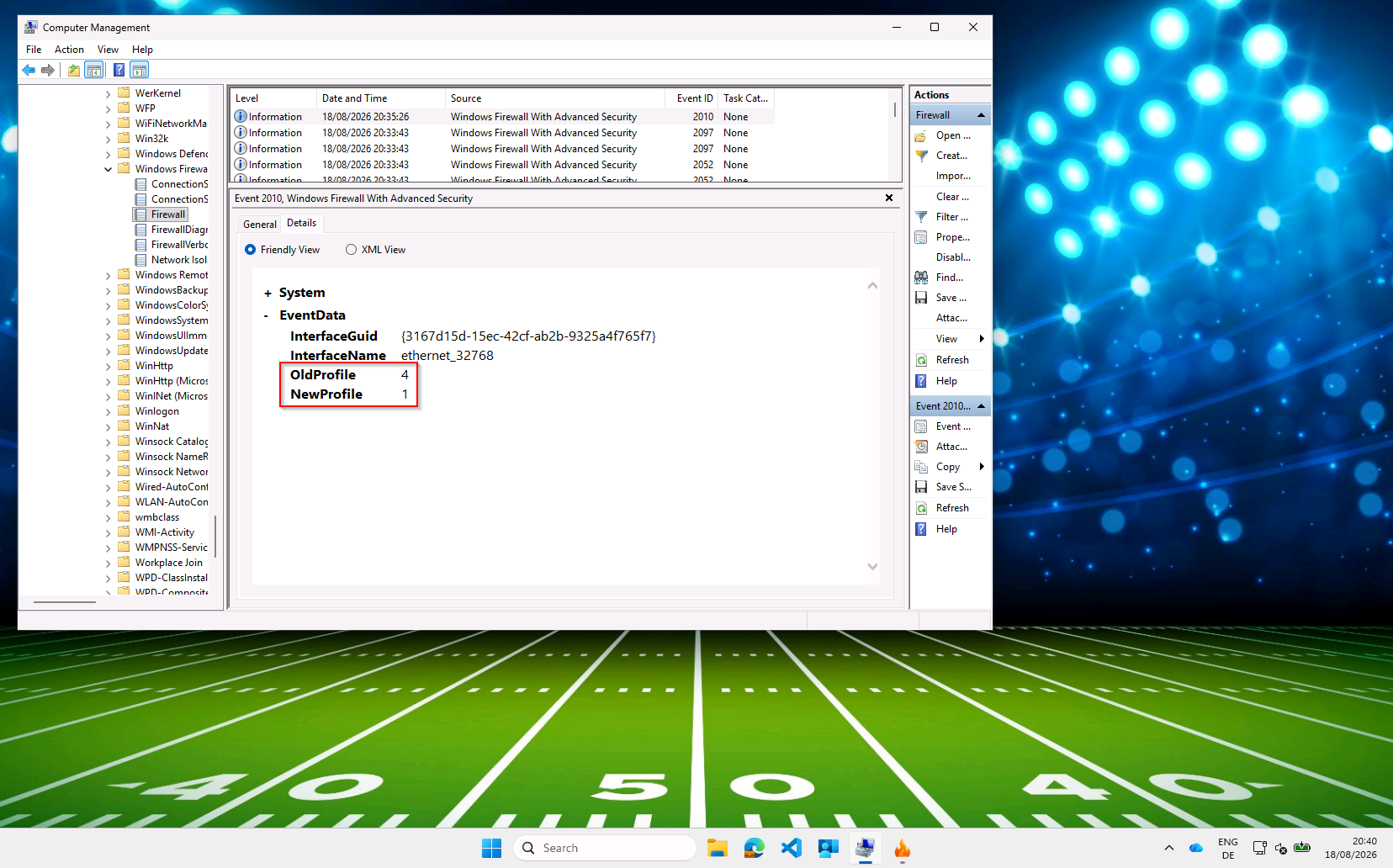

The same event, as the subscription sees it: OldProfile 4 and NewProfile 1. Those are the raw values the filter in Step 3 matches on - not the friendly names above.

Step 4 - Configure the scheduled task

Two triggers. The event subscription from Step 3, plus logon:

<Triggers>
  <EventTrigger>
    <Enabled>true</Enabled>
    <Subscription><!-- the QueryList above, XML-escaped --></Subscription>
    <Delay>PT1M</Delay>
  </EventTrigger>
  <LogonTrigger>
    <Enabled>true</Enabled>
  </LogonTrigger>
</Triggers>

The principal, the action, and the settings that matter:

The action:

<Actions Context="Author">
  <Exec>
    <Command>C:\Windows\System32\conhost.exe</Command>
    <Arguments>--headless powershell.exe -ex bypass -File "C:\Program Files\MapDrivesAndPrinter\MapDrivesAndPrinter.ps1"</Arguments>
    <WorkingDirectory>C:\windows\System32</WorkingDirectory>
  </Exec>
</Actions>

The conhost.exe --headless wrapper is not decoration. Launching powershell.exe directly from a task in the user’s session flashes a console window on screen - every logon, every network change. conhost --headless runs it with no visible window at all.

If you export this from Task Scheduler by hand, note the export is UTF-16 encoded. Preserve that if you edit the file - writing it back as UTF-8 produces an XML file Task Scheduler refuses to import, with an unhelpful error.

Step 5 - Verify end to end

Disconnect from the corporate network, reconnect, and watch the chain: Get-NetConnectionProfile flips to DomainAuthenticated, a 2010 with NewProfile=1 appears in the firewall log, the task’s History tab shows a run about a minute later, and the script’s transcript at %LOCALAPPDATA%\MapPrinterAndShares\MapFromMWP.log shows the mappings. If any link is missing, that is the one to investigate - each step above verifies exactly one of them.

The Complete Task Definition

The task XML, the script, and the Pester test suite are on SasStu/MapPrinterAndSharesCloudOnlyFromAD.

Things to Keep in Mind

Do not poll. A timer trigger every fifteen minutes will eventually catch the network coming up, and it will do so by waking a fleet of laptops all day to check for an event that happens once or twice per device. Across a few thousand machines that is a real battery cost and a real support ticket about battery. Polling is what you write when you have no event.

Do not trust the trigger. The script pre-flights AD itself, with a two-second TCP connect to port 389 and then to 636, and exits 0 when neither answers:

if (-not (Test-ADReachable -ADDomain $ADDomain -Port $ADPort)) {
    Write-Verbose "Active Directory ($ADDomain) is not reachable on $($ADPort -join ', '); exiting quietly."
    Stop-Transcript
    exit 0
}

$ADPort defaults to 389, 636 and the ports are tried in order, so the probe answers the question that actually matters - is a domain controller listening for LDAP from here - rather than assuming plain LDAP is exposed to clients. Environments that have closed 389 in favor of LDAPS still pass the pre-flight. The two-second budget is per port, so the worst case on a network where nothing answers is four seconds before the quiet exit.

Exit 0, not an error. “AD is not reachable right now” is the expected state for most of the day on a laptop. Exiting non-zero would fill your Intune and event logs with red that means nothing, and train everyone to ignore it. The correct behavior on an untrusted network is to do nothing, quietly.

A hang is not a slow success. MultipleInstancesPolicy=IgnoreNew plus a one-hour ExecutionTimeLimit means one stuck instance swallows every trigger for an hour. That is the direct reason the script sets ClientTimeout on its DirectorySearcher and pre-flights with a short timeout, rather than letting an LDAP call hang until Windows loses patience.

Keep the logon trigger. A desktop in the office that never leaves the corporate network signs in with AD already reachable, and for that machine logon is exactly right. It is one trigger among two, not the mechanism.

You still cannot deploy any of this. You have a script that does the right thing and a trigger that fires at the right moment, but no way to get either onto a few thousand machines. Part 3 covers packaging it with PSAppDeployToolkit v4, deploying through Intune, giving users a Start Menu shortcut to re-run on demand, and where to look when one device misbehaves.
